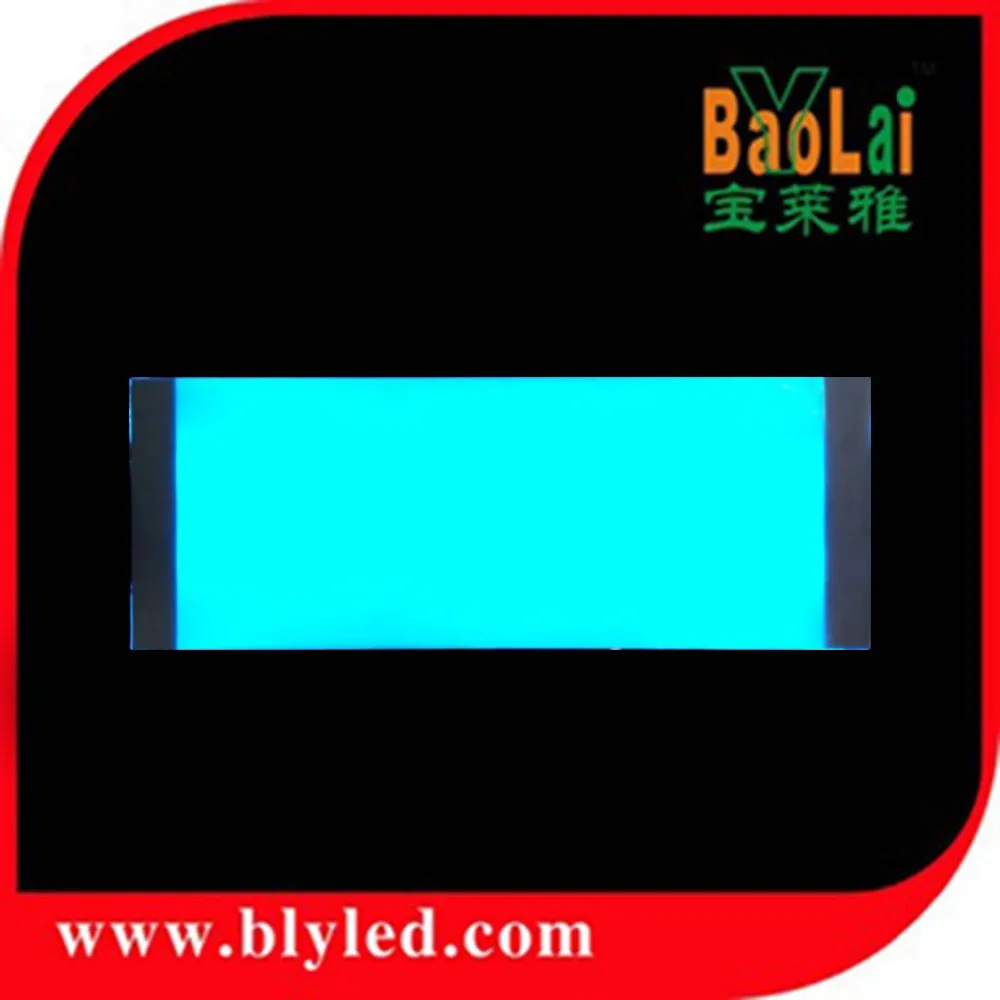

Hot sale small ultra thin indoor pos led sign backlight

FOB Reference Price:Get Latest Price
US $0.15-2 / Pieces | 1000 Piece/Pieces (Min. Order)
Model Number:
BLY-73475
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Chip Material:
InGaN
Emitting Color:
Blue
Luminous Intensity:
40-50
Luminous Flux(lm):
5-6
Optical Attenuation(%):
0.05
Power:
0.045-0.06watt
Power Dissipation:
15-18mA
Viewing Angle(°):
125
Color Rendering Index(Ra):
75
Color Temperature:
RGB
Operating Temperature(℃):
-10 - 60
Storage Temperature(℃):
-20 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Baolaiya
Certification:
CE, RoHS, CE &RoHS
Product Name:
Side LED Backlight
Size:
66.7*54.5*2.4mm
Shape:
can customize
Emiting Color:
Rgb, White, Blue, Amber, Purple
Brightness:
80mcd-200mcd-1000mcd-2000mcd-8000mcd-15000mcd-30000mcd, etc
Power Consumption Per Piece:
0.045-0.06W
Drive Current Per Piece:
10-20mA
Voltage:
2.0-3.5V
Quality Guarantee:
2 years
Supply Ability
Supply Ability:
800000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
15 years Factory focus on LED Backlight,LCD Display Screens,LCM,TFT Touch Screen,OLED Display Screen,LED Digit Display
We supply general model as 1602 2004 12864 24064 LCM and so on.
Also we supply customized of size and shapes Backlight and LCD.
Port
Shenzhen/HongKong
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(day) 10 To be negotiated

Hot sale small ultra thin indoor pos led sign backlight

Related Producs

backlight led

Product Description



1. Backlight Source:Side Edge LED lighting source Backlight;

2.Side LED Backlight constitute:Diffusion Film,Reflect Film,light guide plate,Shading Area,Lights,PCB,DIP,Laser Dot Grid;

3. Light Guide Plate:Thickness 0.4mm-6mm;

4. Shading Area:Above 7mm when used DIP LED,

                       Above 4mm when used SMD LED

5. Active Area:The area can display;

6. Application:LCD Display Screens Back Light,LED Advertising Panel,Logo Light Back;

7. Connector Type:Pins,PCB touch,FPC,SMD,Connector Terminal;

8. Working Voltage/Electric Current:Custom as the brightness;

    White LED Lights Voltage:2.8V to 3.4V;

    Color LED Lights Voltage:1.8V to 2.4V

9. Custom must supply the following Specification,that we can quote immediately and exact.

1) Custom size of the backlight board;

2) Thickness of light guide panel;

3) Active Area size of the LED Backlight;

4) Luminance of the back lights;

5) LED light connector type like DIP LED, Pin,SMD or FPC;

6) Thickness of the back lighting plate;

7) A picture of the appearance,or drawing sketch of the led backlight

8) Color of the LED light,White,warm white,green,yellow,blue,RGB colors

9) Input Voltage and Connection Method

TypeLight ColorLuminanceVF(Voltage)Cost
Side LED BacklightY,Y-G,G,O,R5~30cd/m2DC2,1v ,3,2vCheapest
Bottom LED BacklightY,Y-G,G,O,R10~50cd/m2DC2,1v ,3,2v ,8.4vExpensive
EL BacklightB,G,W10~30cd/m2AC100V ,400HZExpensive
CCFL BacklightWhite15~60cd/m2AC100V ,80KHZCostly
Certifications



Company Information



   BAOLAIYA OPTO-ELECTRONICS (HongKong) CO, LTD, was found in 2003,  is an integrative group which  researches and develops, produces and sells opto-electronics products and display devices.

    Our first factory has 50 auto production lines,  mainly produces LED and LED backlight ,LED digit display panel which outputs are about 8kk-13kk per month.

    Our second factory has 5 auto production TP lines, mainly researches, develops and produces Touch Screen products from 1 inch to 19 inches. capacitive Touch screen ,resistive touch screen,TFT touch screen Our products are applied for GPS, vehicle-mounted DVD, Medical equipments, control switches, tablet PC and so on.

    Our third factory has 5 auto production LCD lines, mainly produces segment LCD Display Screen, lattice LCD, VA LCD, COG LCD, COB LCD and LCD module products from 1 inch to 12 inch.Our products are applied for small household appliances, small kitchen appliances, Car stereos, hair straighteners, curling irons, RF-remote control switches, LED power supply, temperature controllers and so on.

Ordering Process



Segments LCD Display Screen Customized:

1.Glass size/ITO Glass size  (main small size lcd screen,0.5",1",2",3",4",5",6",7")

   The glass general thickness 0.4mm,0.55mm,0.7mm,1.1mm,and the polarizer thickness 0.3mm

   Total LCD screen thickness eg:0.4mm+0.4mm+0.3mm+0.3mm=1.4mm

 2.Display Model

    TN STN HTN FSTN VA BTN

    Negative and Positive Display

 3.Viewing Direction

    6 o'clock 12 o'clock  3 o'clock  9 o'clock

 4.Polarizer Type

    Transparent (need match LED backlight),

    Transflective (need match LED Backlight,but no light dispaly in the day)

    Reflective (no backlight,and can't see clear at night)

5.Display back color and characters color

   Gray,Blue,Yellow green,Black,Purple

6.Operating Temperature

   0~50℃ , -10~60℃ , -20~70℃ , -30~80℃ , -40~90℃

7.Content and Segments

   Content and segments decide the pins number,and affect the unit price

8.Drive Method  such as: 1/4 Duty and 1/3 Bias or static.

LED Backlight Customized:

1.Light Guide Panel Thickness:

  General Thickness: 0.8mm 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm 3.5mm 4mm 5mm

  Open tooling: any thickness as custom;

  total Thickness of backlight: eg. 0.8mm+0.2mm(diffusion film)+0.2mm(reflecting film)

2.LED lights

   DIP light, SMD lights, monochrome lights and RGB lights.

   DIP 234 123,SMD 3014 1206 0805

3.Connector Type

  Pins,PCB touch,FPC,SMD,Connector Terminal

4.Voltage

   LED light white and green 3.0v , Red and blue 2.0V

5.Color

   White , blue ,green,red,both of RGB,RGB;

7 Segment Digit LED Display

1.supply digit size and display size customized.

2.Content want to display.

3.the symbol between the Digit

FAQ



1. How about Baolaiya Opto-electronic company?

Baolaiya Opto-electronic is a led backlight manufacturer established 15 years ago in Shenzhen.Its main producing LCD display screen,LCD modules and LED backlights,LED digit Display,Touch Display Screen,OLED Screen,LED Backlight Advertising panel,LED Backlight Photos Frame.

2. Do you support customized LCD display screen?

Yes,we support custom any size LCD screen and LED backlight matched the LCD.

3. How long is the service life of LCD screen?

1 million hours long-term

5. Which brands do you used of ITO glass?

Our LCD display screens structure included ITO glass,polarizer,crystal liquid.

Main brands we used is Nanbo,Changxin,Huayi and so on.

6. How to choose a LED light after confirm order?

You must supply the details and the application environment.

7. Could you help us write program for the LCD Modules?

Yes,I do.If you need the simple program we can write for you with a little fee.

8. Normal specification of the LED backlights.

Normal size of the light quide plate is 0.8,1.0,1.5,2.0,2.5,3.0,3.5,4.0,5.0,6.0mm thickness.

And not normal size need die sinking.

9.Segment LCD Screen Display Mode?

   TN,HTN,STN,FSTN,VA/BTN,also touch Screen with the Segment LCD.

   COB,COG,COF,TFT,OLED also Custom size and shape as you need.

10.General Dot Matrix graphic LCM model:128x64  240x160 160x80 320x240 12232a 12832  128x128 256x64

     General Characters Segments lcd module:16x3 20x4 16x2 8x2

Our Services



Application Fields

 Apply to calculator,remote,watch,USB key,meter,electricity meter,tester,household appliance,gameboy,LOGO,Banner.LCD MODULES
