Quick Details

  • Type: LED Modules
  • Model Number: BLY-B8251WE
  • Emitting Color: Red, as per customers requires
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BLY
  • Color: Rgb,White,Warm white,Red,Green,Blue,Pink,Yellow,Amber,Cyan,Kenny,etc.
  • Thickness: Customerized thickness from 1.4mm to 8.4mm.
  • Voltage: Customerized Voltage from DC3.0 to DC24V, DC 3.0V to 24V (customerized)
  • Specification: Customerized specification bigger can be 1200*2000mm
  • Lighting color: Customerized any color available.
  • LED Style: 234 dip led,3020,3528,0603,5050SMD led
  • Uniformity: More than 75%
  • Cathode and anode leg: Customerized can be wires or mental pins.
  • Lifespan: More than 50,000 hours.
  • Other: Multi clor and RGB lighting color designed
  • Certification: RoHS
  • Power Consumption Per Piece: 0.045Watt to 0.06Watt
  • Drive Current Per Piece: 15mA to 20mA

Packaging & Delivery

Packaging Details We use special design packing as per led backlight specification.
Delivery Time delivery in 7 to 25 working days after receipt of payment

Specifications

ultra thin led backlight
1.Light color and specification customerized.
2.Good quality,long life.
3.Lower power,
4.Low cost.

ultra thin led backlight

1) Characters:

1.All colors and shapes available.
2.Good quality,long life.
3.Lower power,lower cost.
4.ROHS approved.
5.Two years quality guarantee.

2) Functions:
Used for lcd moudle,led screen,led meter light,led signs,led logo signs,advertising,lighting.etc.

3) Light color:
Have full/rgb color,red,white,green,yellow,purple,orange,blue,yellow green,purple,amber,kenny light color.

4) Brightness:
Many brightness scale range available,10-30mcd,30-50mcd,50-100mcd,100-300mcd,300-800mcd,800-1000mcd,1000-1500mcd.

5) Shapes,many kinds of shapes available:
Square shape,round shape,fan shape,special shape.etc.

6) Size: Can be customerized. Max size: 1200mm*2400mm.

7) Thickness: Can be customerized. Min thickness: 1.4mm.

8) Voltage: Can be customerized: DC3.0V,DC9.0V,DC12.V,DC24V,DC24V,DC36V,AC85-265V.

9) Unniformity: Min uniformity:75%. No light spots on the whole led backlight surface.

10) Lifespan: More than 50,000 hours.

11) Normal schedules:
1.design drawings available in 8 hours after receipt of customer's email with detail requires.
2.samples available in 3 to 5 work days per engineer dept's sample's schedule after design confirmed.
3.Goods delivery in 10 to 15 working days as per quantity and our production dept's production schedule.
4.LCD moutning in 15 work days and we can also provide led backlight with LCD per customer's requires.



  All sorts of side led backlights.

 Special fan shapes of side led backlights.

 Square shape green lighting side led backlights.

 Mould mounting side led backlights.

 Yellow Green lighting led backlights.

 1.4mm designed led backlit.
 RGB side led backlight in Pink lighitng situations.

 Keyboard side led backlights.


Laser cutting design led backlight.

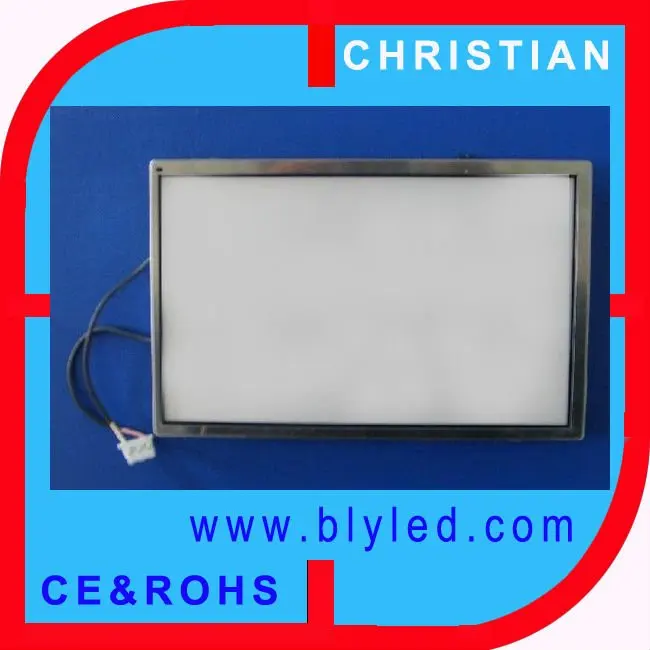

Led backlight with aluminum frame.

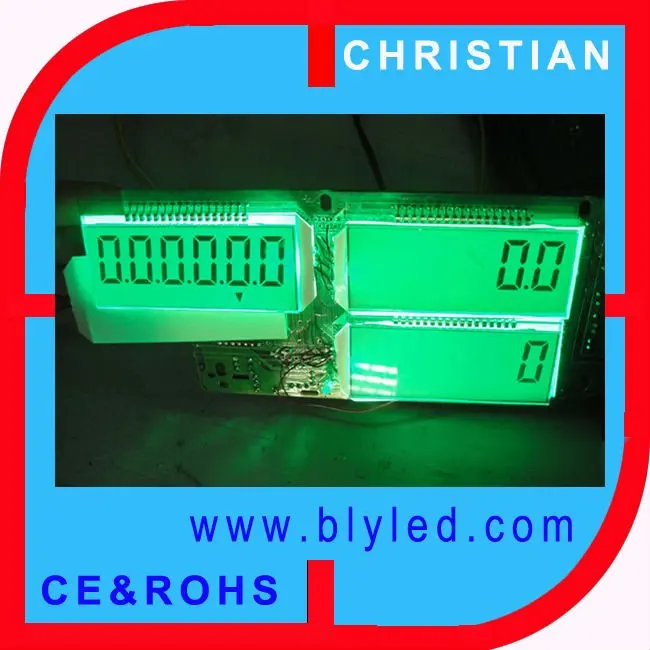

LCD with led backlight.

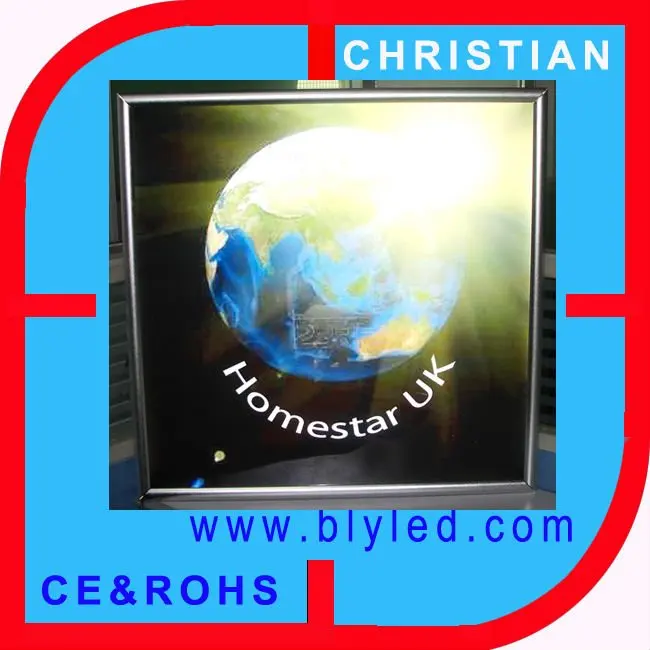

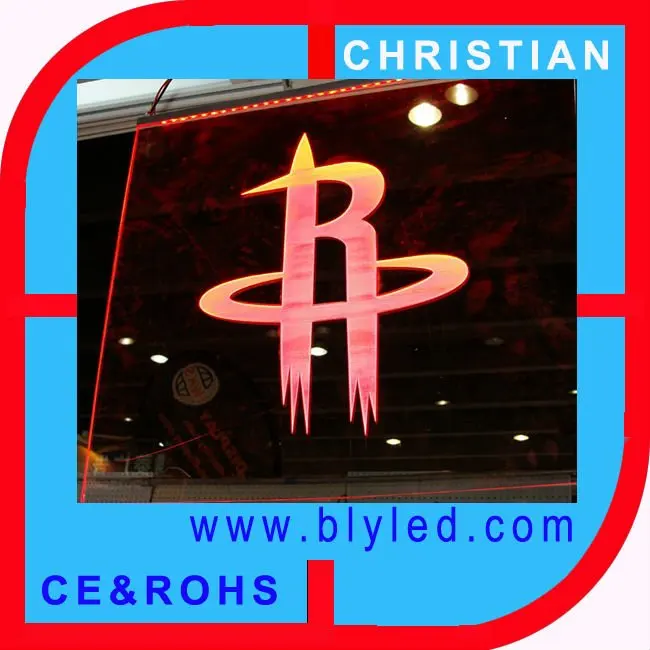

 Led backlight for advertising purpose.
